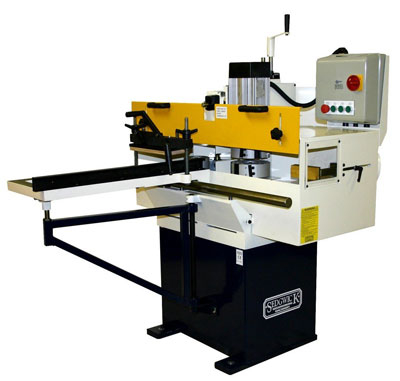

Taking only minutes to set up, the Sedgwick TESH Tenoner is easy to use and accurate in operation. Work is positioned on the rolling table against an end stop and a fence, and is secured by a cam action clamp.
Its end is then passed between two vertically mounted cutterheads which machine the top and bottom cheeks of the tenon.

Call For Price

SKU: Sedgwick TESH Single Ended Tenoner Category:
  • Description
  • Product Enquiry

Description

Taking only minutes to set up, the Sedgwick TESH Tenoner is easy to use and accurate in operation. Work is positioned on the rolling table against an end stop and a fence, and is secured by a cam action clamp.
Its end is then passed between two vertically mounted cutterheads which machine the top and bottom cheeks of the tenon. The tenon width is set by raising or lowering the top motor, and its position on the timber by raising/lowering the two motors in tandem. Variations in shoulder length are set usinq the rule on the end stop, and staggered tenons are achieved by simple handwheel adjustment of the top motor, again reading from a rule.

Each cutting head has provision for profile knives to enable the operator to match the cross section of the components being jointed. Alternatively the optional scribing head provides improved accuracy, ease of setting, and finish.
Stepped tenons, splayed tenons, scribed tenons, double tenons, and multiple bridles are all possible on this versatile machine. Combinations of 90 degree and bevelled cutting discs with appropriate spacers can also be fitted to produce interleaved joints as used in sash window construction.

The Sedgwick TESH is designed and built to withstand continuous production use. Its cast iron base, column and slideways provide a rigid and durable mainframe assembly, and the 2.2Kw supply motors ample power.
The generously roportioned cast iron sliding table is mounted on earing equiped hardened steel rollers for minimum wear, and cutterhead slide movements are easily adjusted on dovetail slides for ease of maintenance.

The Sedgwick TESH Single Ended Tenoner offers all of these safety features as standard:

Automatic braking
Starters with thermal overload, no volt release protection and lock off emergency stop switch.
High performance lightweight cutter blocks with chip limiting devices
Large diameter dust extraction outlet
One piece front cutter guard

Technical
Motor Rating 2.2kw
Timber Capacity 130mm x 310mm
Timber Capacity With Fence at 45° 130mm x 250mm
Max Length Of Tenon 155mm
Max Length Of Tenon (2 Passes) 205mm
Vertical Adjustment Of Bottom Cutter Block 0 to 60mm
Vertical Adjustment Of Top Cutter Block 0 to 100mm
Horizontal Adjustment Of Top Cutter Block /- 32mm
Table Size 800mm x 310mm
Table Working Height 860mm
Main Cutter Heads 2 x 175 x 50mm
Scribing Head
Motor Rating 1.1kw
Cutter Block 150 x 32mm
Shaft Diameter 19mm
Effective Length Of Shaft 40mm
Vertical Movement 85mm
Horizontal Movement 40mm
Max Diameter Of Tooling 200mm
