M.Power E 300 1.6 met Panel Saw

M.Power E 300 1.6 met Panel Saw

£3,950.00 + VAT

The E 300 Panel Saw is a heavy duty Sliding table Panel Saw fitted with a 1.6 Met ALU sliding Table. The machine has a powerful 4 KW (5.5 HP motor ) and can be used for cutting Solid Wood up to 80mm in Thickness and Panels up to 8 x 4.

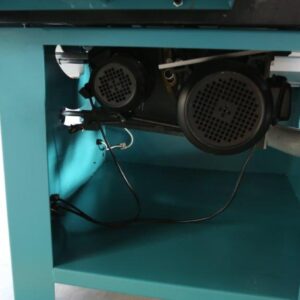

The machine has a tilting facility up to 45 Deg as well as adjustable rise & fall by Handwheel. The machine is fitted with an independent scoring unit, powered by a separate 0.75 HP motor. Dust extraction outlets are fitted to the machine for connection to a separate dust extraction unit (Optional Extra) if required. The main saw motor is braked.

Specification

Overall Size 1600 x 2450 x 900 mm
Sliding Table 1600 x 375 mm
Length of cut 1500 mm
Cut Height 80mm
Saw Blade Dia 300/315mm
Scoring Saw 120mm
Main Saw 4 KW 2 Speed
Scoring Saw RPM 8000 rpm
Main Saw Tilt 45 deg /90 deg
