The disc brake stops the machine instantly when abnormal motion occurs. It provides a safety guard in case of belt miss-tracking, belt breaking, or when the body activated emergency stop bar is touched.
2-STEP FEED SPEED
The 2 step feed speed of the conveyor belt allows the sander to work on various wood materials.
Optional: Variable Feed Speed
ACCURATE READING THICKNESS SCALE
This sander is equipped with a thickness vernier scale for accurate reading of conveyor table opening when making thickness adjustment.

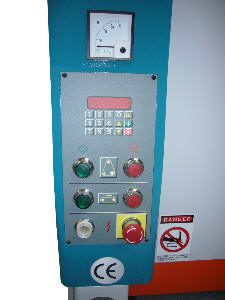

All machine controls are centralised in a control panel for convenient operations. Push buttons are clearly identified. A load meter is also on the control panel, showing the percentage of full load on the sanding head.
Optional: Digital Control
SANDING BELT OSCILLATION CONTROL
The sanding belt’s oscillation is controlled by dust proof air eye. The sanding belt can oscillate if there is a power failure. The oscillation range of the sanding belt is 15-20 mm. The reverse and cross sanding on the panel creates a better clarity of grain. Thus greatly extending the service life of the sanding belt.
|Max working width||620mm|
|Max working height||150mm|
|Main spindle motor||10HP|
|Table lifting & lowering motor||1/4HP|
|Feed speed||4.59 & 9.18 m/min|
|Size of sanding belt||635 x 1524mm|
