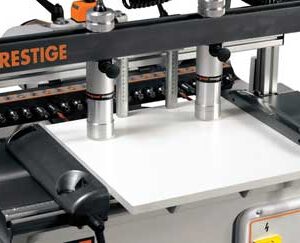

Maggi Multi-Spindle Borer Type Prestige 21

Maggi Multi-Spindle Borer Type Prestige 21

  • Quick changes chucks
  • Cast iron made boring head
  • Cast iron made working table
  • Patented Spiral System
  • Pneumatic head rotation, lock and stop from 0° to 90° at any angle
  • Adjustable fences on table, accurate positioning with a ruler and magnify glass
  • Digital counter for regulation of drills height from the table
  • Rear fence max stroke 300 mm
    Machine manufactured according to EC STANDARDS
Please note price is Ex-Works, call re Shipping

£3,450.00 + VAT

SKU: Maggi Multi-Spindle Borer Type Prestige 21 Category:
  • Description
  • Product Enquiry

Description

  • Quick changes chucks
  • Cast iron made boring head
  • Cast iron made working table
  • Patented Spiral System
  • Pneumatic head rotation, lock and stop from 0° to 90° at any angle
  • Adjustable fences on table, accurate positioning with a ruler and magnify glass
  • Digital counter for regulation of drills height from the table
  • Rear fence max stroke 300 mm
    Machine manufactured according to EC STANDARDS
Technical
Number of Spindles21 (10-11)
Interaxis between Spindles32mm
Interaxis between First and Last Spindle640mm
Inside Diameter of Quick Change Bushes10mm
Max Height of Clamps from Working Table70mm
Number of Clamps2
Number of Motors1
Motor Power2 (1,5) HP (kW)
Motor RPM (50 Hz)2800 rpm
Noise Level76,1 dB
Working Air Pressure6-8 bar
Standard Air Pressure Consumption10 l/ciclo-cycle
Overall Dimensions1030x1030x1285mm
