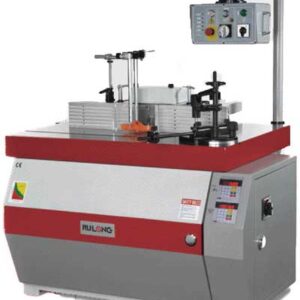

Rulong Programmable Tilting Spindle Moulder Type 513

Rulong Programmable Tilting Spindle Moulder Type 513

Call For Price

Tilting Spindle Moulder

  • Tilting Spindle: -45 ~ 45 Degree
  • Spindle Height up & down and spindle tilting by electrical.
  • Dimension of working table: 1300 x 850mm
  • Spindle speeds: 3000/4000/6000/8000/10000
  • Opt. sliding table: 1300 x 325mm
SKU: Rulong Programmable Tilting Spindle Moulder Type 513 Category:

Description

Technical (SS-513T / TS Plus, SS-513T Eplus)
Dimension Of Working Table 1300 x 850 mm
Working Table Height 900mm
Spindle Vertical Stroke 180mm
Max. Tool Diameter
Below Table Top 320mm
Above Table Top 360mm
Spindle Speed 3000/4000/6000/8000/10000rpm
Rotation Forward and Reverse
Motor Power 7.5/10 HP
Sliding Table Dimensions (TS) 1300 x 325mm
Working Stroke Of Slide (TS) 1230mm
Spindle Tilting -45 ~ 45 Degree
2-Position Tenoning Carriage TC-1 (opt. for T)
Dimension Of Working Table 900 x 300mm
Working Stroke 900mm
