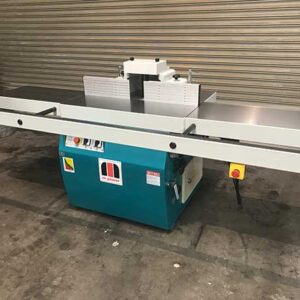

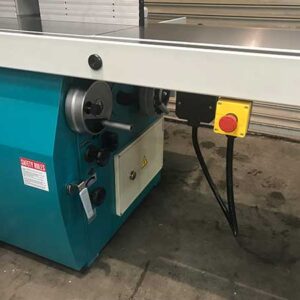

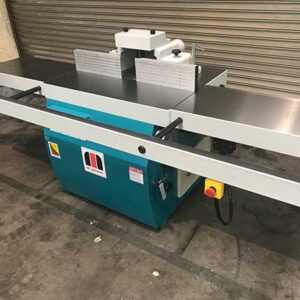

Mpower 512TS Spindle Moulder

Mpower 512TS Spindle Moulder

The advantages of the Mpower 512TS backward tilting spindle

  • Safer working. Machining from under the workpiece makes for optimum protection.
  • Possibility of machining any sizes of workpiece.
  • Full use of pressure guards or power feeder without regard to the obstruction.
  • Minimizing the load on spindle bearings to ensure the durability and precise moulding profile.
  • Perfect dust collection. Wood chips are directed into exhaust outlets.

Option LL 2.5 Metre Extension Tables With Pull Out Support
Option 40mm Interchangeable Spindle Working Height 160mm

Please note price is Ex-Works, call re Shipping

£6,850.00 + VAT

  • Description
  • Product Enquiry

Description

Outstanding Features
  • Working safely, in compliance with the latest safety regulation enforced.
  • Hardened, ground and electronically balanced spindle in special steel guarantees the absolute absence of vibrations.
  • Spindle interchangeable and collets available for use of router bits.
  • Cast iron table of great solidity with ground surface.
  • Sliding table in cast iron glides on six adjustable ball bearings for smooth table travel for the long term.
  • Heavy cast iron, extruded aluminium fence assembly is fully adjustable.
Technical
Dimensions of working table1000 x 800mm
Working table height900mm
Spindle vertical stroke180mm
Max. tool diameter below table top210mm
Max. tool diameter above table top335mm
Spindle speed3000 / 4000 / 6000 / 8000 / 10,000
RotationForward and reverse
Motor Power7.5HP
Sliding table dimensions (TS)1000 x 260mm
Working stroke of the slide
(TS)
940mm
Spindle tilting-45~+10
Overall size1230 x 1000 x 1340 mm
Packing size1055 x 1210 x 1165 mm
Net weight480 Kg
Gross weight550 Kg
