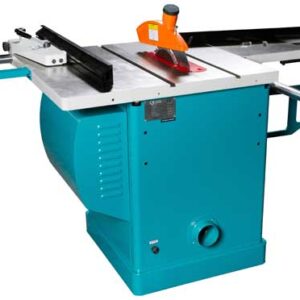

Mpower TS 300 Dimension Saw
Download brochure
- Heavy duty cast iron table.
- Precision engineered rise & fall / tilt mechanism.
- Self adjusting riving knife.
- 635mm cross-cutting table with telescopic mitre fence & timber stop.
- Auto de-brake.
- 300mm TCT sawblade.
- Operator manual, pushstick & spanner.
- Dust extraction outlet x 2, 50mm & 100mm.
Call For Price
- Description
- Product Enquiry
Description
- Heavy duty cast iron table.
- Precision engineered rise & fall / tilt mechanism.
- Self adjusting riving knife.
- 635mm cross-cutting table with telescopic mitre fence & timber stop.
- Auto de-brake.
- 300mm TCT sawblade.
- Operator manual, pushstick & spanner.
- Dust extraction outlet x 2, 50mm & 100mm.
| Technical | |
|---|---|
| Blade Diameter | 305mm |
| Blade Arbor Diameter | 30mm |
| Blade Max. Thickness at 45 Degree Cut | 73mm |
| Table In Front Of Saw Blade At Max. Cut | 254mm |
| Dust Port Diameter | 100mm |
| Table Height | 860mm |
| Table Size (With One Extension) | 866 x 800mm |
| Table Size (Without Extension) | 612 x 800mm |
| Saw Blade Speed | 4300rpm |
| Motor | 3HP Single Phase 230V or5HP Three Phase 400V |
| Distance To Saw Fence | 678mm |
| Cross Cut Table Size | 354 x 650mm |
| Cross Cut Table Travel | 1030mm |
